The Hydrocone concave and mantle play a vital role in the performance of cone crushers, ensuring optimal operation and durability. In this article, we will explore everything you need to know about the Hydrocone concave and mantle, including their purpose, design, materials used, how Hydrocone crushers work, maintenance tips, and key considerations when selecting the right concave and mantle for your equipment.
Both the concave and mantle are critical components in cone (Hydrocone) crushers. For purchasing top-quality Hydrocone parts at the best prices—including models like Hydrocone 45, Hydrocone 36, and more—you can visit Avangard’s store.
Avangard Company specializes in the production, casting, and sales of Hydrocone crusher parts, with years of experience and technical expertise in the field. To learn more about Hydrocone concave and mantle components, their dimensions, and to receive technical specifications and catalogs, stay connected with us.
Looking for high-quality parts for your Hydrocone 45 and Hydrocone 36 crushers?
Avangard Industrial Trading Holding offers a wide range of Hydrocone crusher parts, including Hydrocone oil pumps, Hydrocone packing seals, spare parts, and various concaves and mantles with precise technical specifications to help you maintain your Hydrocone crusher in optimal condition.
With over 20 years of experience in supplying and manufacturing crusher parts, Avangard is recognized as one of the most trusted companies in this field.
Our team of experienced specialists is ready to provide free consultation to help you choose the most suitable parts for your Hydrocone 45 and Hydrocone 36-inch crushers.
Additionally, if you need repair services, our expert repair team is available to assist you with professional support.
For more information, to place an order, or to purchase Hydrocone crusher parts, contact our sales team:
• Phone: +98 912 022 8576
• Website: en.avangardholding.com
At Avangard, we are committed to delivering high-quality parts and reliable after-sales service.

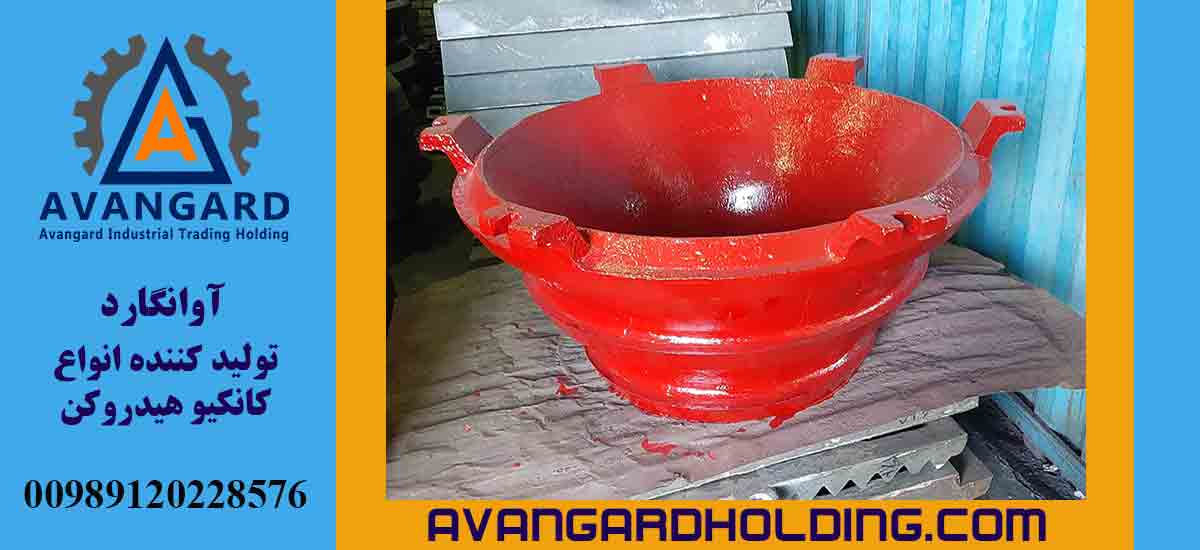

What is a Hydrocone Concave?
The Hydrocone concave refers to a specific type of crusher chamber used in cone crushers, which are widely employed in mining and aggregate industries to crush various types of rocks and ores. Also known as the crusher bowl liner, the Hydrocone concave is one of the key components of a cone crusher, directly influencing the particle size reduction process.
The Hydrocone concave features a curved design and is fixed inside the crusher body. Its primary function is to provide a crushing space for raw materials and help control the final product size. It plays a critical role in determining the efficiency, performance, and particle size distribution of the crusher.
Inside a Hydrocone concave, the inner surface resembles an upward-facing bowl. This part is usually made of manganese steel or manganese-molybdenum steel, offering excellent wear resistance. During the crushing process, the concave interacts with the moving mantle, creating a crushing cavity where rocks are compressed and broken down.

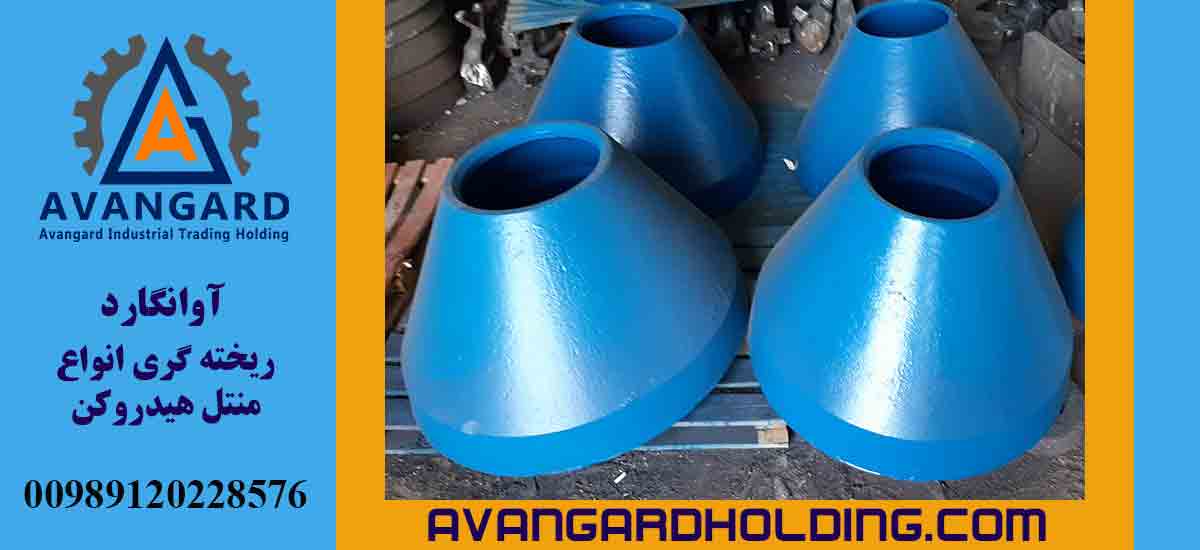

What is a Hydrocone Mantle?
The Hydrocone mantle is another crucial component of the cone crusher, along with the concave. This part is movable and rotates around the main shaft. Generally, the mantle is made of manganese steel or Hadfield steel with molybdenum, which is highly wear-resistant. As a result, it provides excellent resistance to high pressures and abrasive forces during the crushing process.
The primary function of the Hydrocone mantle is to break down raw materials into smaller pieces by applying pressure and compressive forces. As the mantle rotates, it moves closer to and farther from the Hydrocone concave, exerting a compression cycle on the materials entering the crushing chamber.
This continuous compression and breaking process reduces the size of the rocks until they are small enough to pass through the crusher discharge opening.
The design, shape, and specifications of the Hydrocone mantle are engineered to optimize the crushing process. It works in tandem with the Hydrocone concave to ensure efficient and precise crushing while minimizing the production of fines and maximizing the overall throughput.
Concave Mantle Hydrocone in Different Sizes
In the table below, you can see the technical specifications and dimensions of the Hydrocone concave mantle in various sizes.
| Model | Mantle | Concave | Top Shell | Max. Inlet Size (mm) | Closed Side (mm) | Total Production (ton/hour) | Fines (ton/hour) |
|---|---|---|---|---|---|---|---|
| 2-36 | 2 | 2 | 4 | 50 | 8-10-13-19 | 60-65-70-80 | 42-45-49-56 |
| 4-36 | 4 | 4 | 4 | 100 | 13-16-19 | 80-90-100 | 52-58-65 |
| 5.5-36 | 4 | 5.5 | 5.5 | 140 | 19-22 | 105-115 | 68-69 |
| 7-36 | 4 | 7 | 7 | 175 | 25-29-32 | 145-150-160 | 87-90-96 |
| 8-36 | 4 | 8 | 8 | 200 | 32 | 165 | 82 |
Application of Hydrocone Concave Mantle
The Hydrocone concave mantle plays a vital role in ensuring the efficient performance of crushers and guarantees optimal efficiency and productivity. It is crucial for industries that rely heavily on crushing operations to have access to high-quality and reliable crusher tools and equipment.
Avangard, as a well-known and trusted manufacturer of Hydrocone crusher parts, offers a wide range of crushers, tools, and equipment. Our products meet the highest standards of quality and performance. We have the capability to fulfill the needs of various related industries in any size with the production of various crusher products and ferroalloys.
In addition to high quality, our products are offered at competitive and reasonable prices. With Avangard, you experience the opportunity to buy from a reputable company that prioritizes quality, reliability, and customer support. For more information, contact Avangard.
